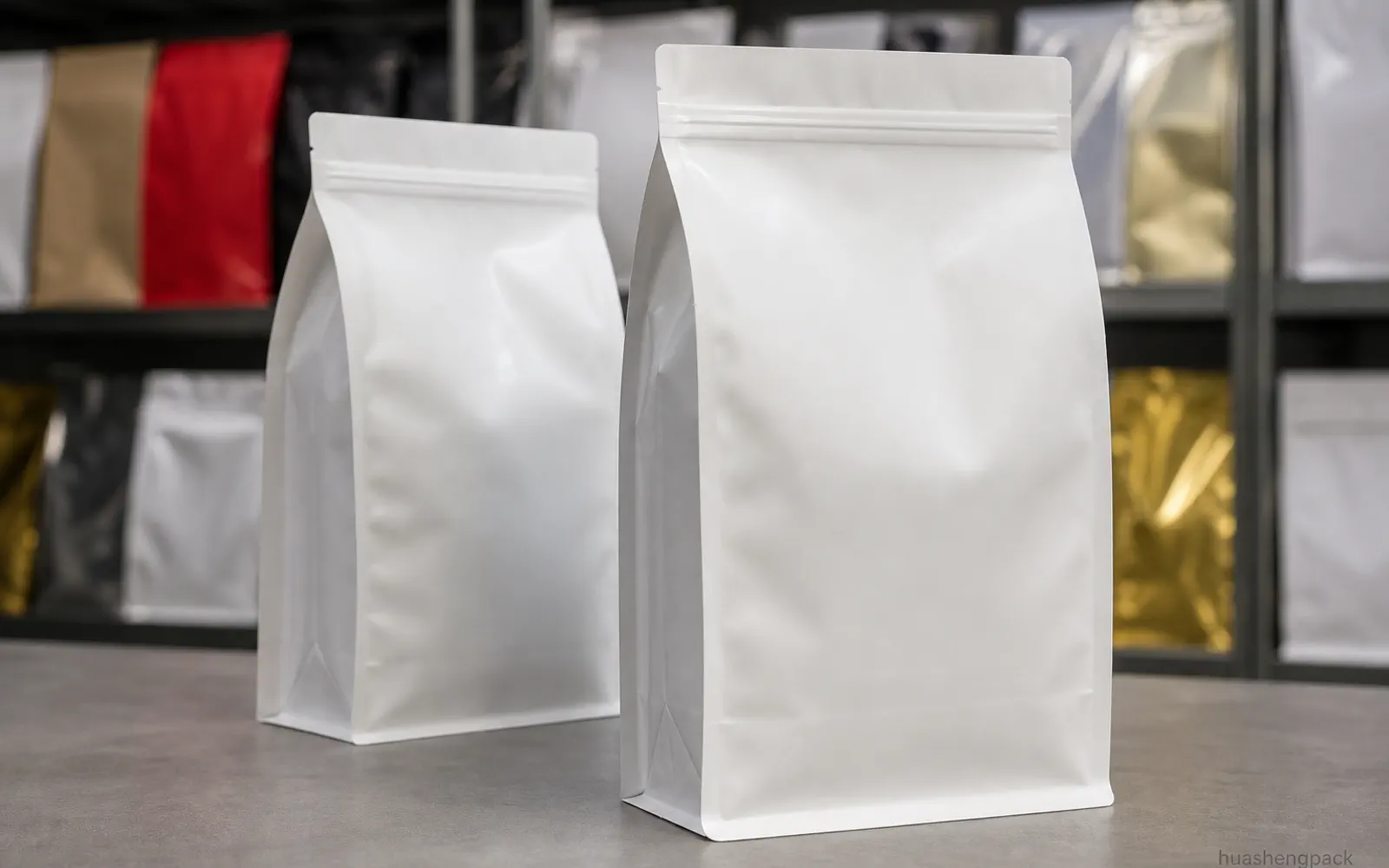

Custom Flat Bottom Pouch for Printed Flexible Packaging

Product Overview

A flat bottom pouch uses a separately formed base with front, back and side panels to create a box-like retail pack. It may suit coffee, nuts, snacks, dry pet food and powders when shelf footprint and panel area matter. Selection should start with product density, target fill, filled dimensions, headspace, filling opening and closure rather than a generic weight range. Flat bottom, quad seal and side gusset formats can look similar when filled but use different constructions.

Common Applications

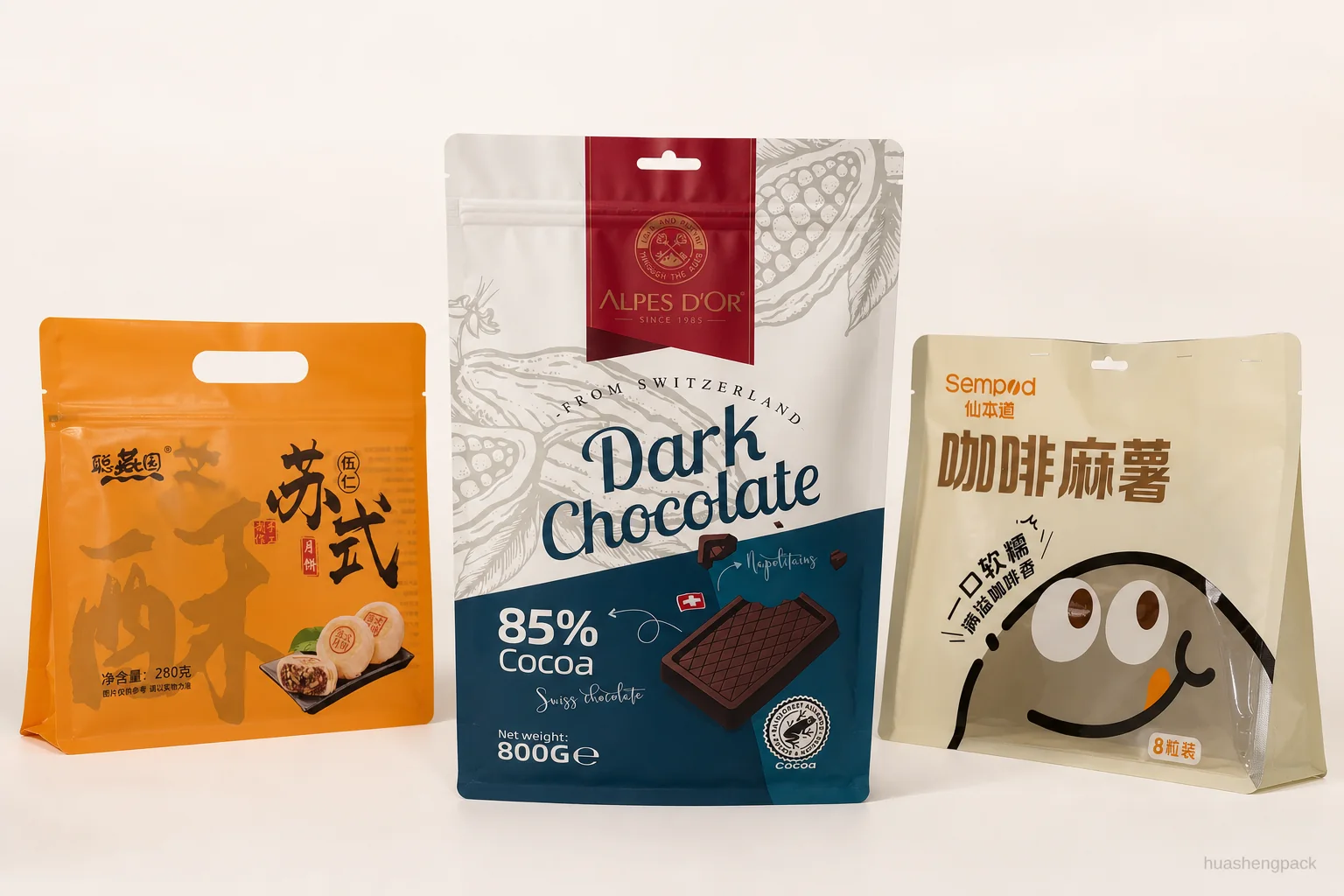

• Coffee, tea, nuts and snacks requiring a stable retail footprint and multiple print panels
• Dry pet food or treats after load, puncture and closure requirements are validated
• Powders and granules where gusset volume, filling access and seal contamination are controlled

Material Options

• PET/PE — A possible clear or moderate-barrier route for suitable dry products. Confirm stiffness, sealing and shelf-life needs.
• PET/VMPET/PE — An opaque metallized route for moisture, aroma and light control. VMPET is not aluminum foil.
• PET/AL/PE or reinforced laminate — May be evaluated for higher barrier or load demands. Confirm flexing, pinhole risk, seals and cost.
• Kraft laminated structure — Provides paper appearance while inner layers provide sealing and barrier. Claims depend on the complete laminate.

Key Features

• A formed base can provide a broad shelf footprint when dimensions match the product
• Front, back, two side panels and base provide structured artwork zones
• Zipper, valve and selected window options may be integrated when clear of seals and folds
• Filled shape and stability depend on density, headspace and base expansion, not the empty pouch alone

Printing & Finishing Options

• Printing method — Rotogravure printing up to 9 colors
• Surface finish — Matte, glossy or registered matte direction subject to artwork review
• Functional options — Zipper, window, valve, spout, tear notch or machine marks when relevant

Technical Parameters

• Use product density and target fill to establish width, height, side panels, base and headspace.
• Confirm whether the requested sample is truly flat bottom rather than quad seal or conventional side gusset.
• Reserve zipper, valve, window, notch and final top-seal clearance on the approved dieline.

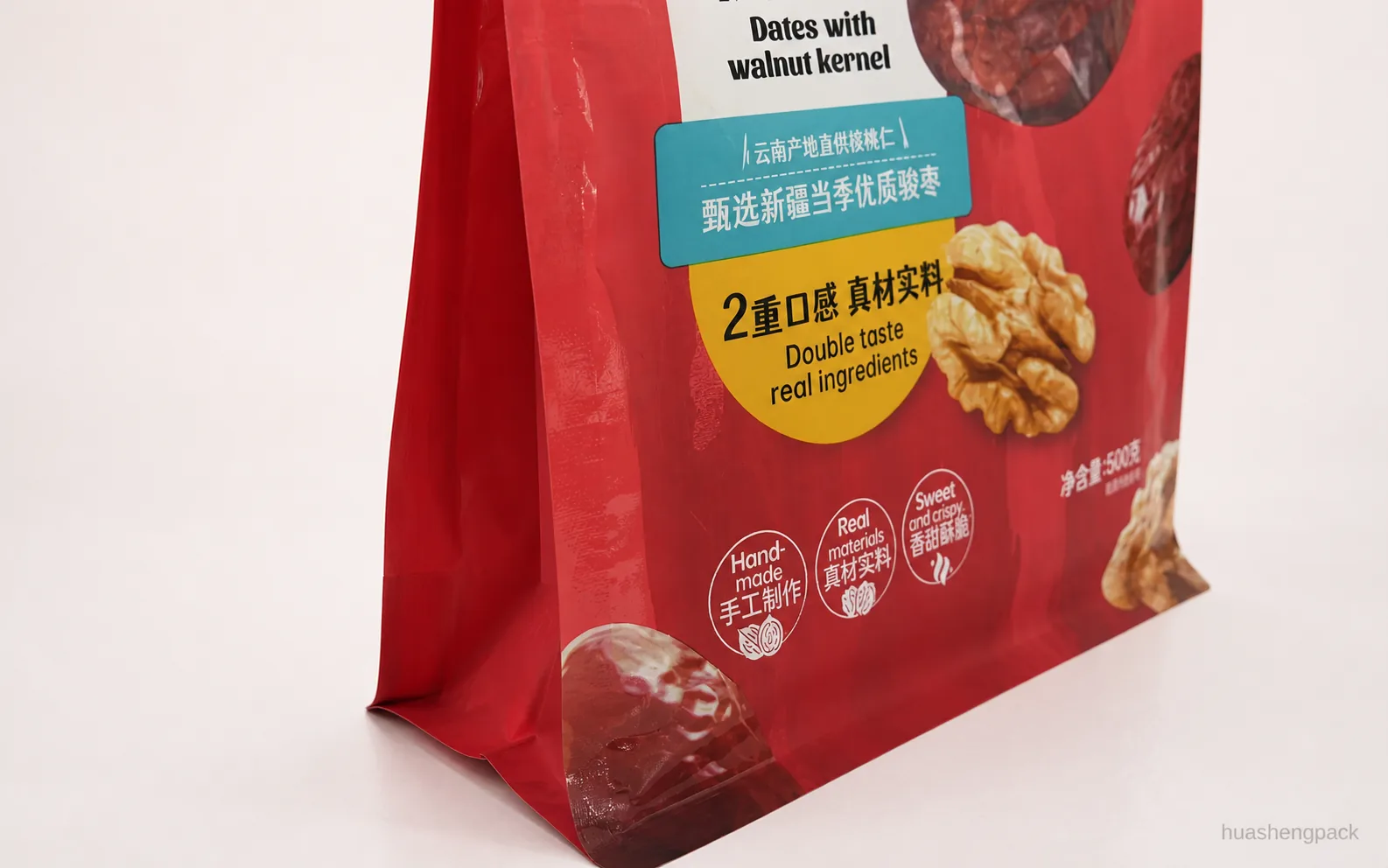

• Review bottom corner and panel-seal intersections under filled load, drop and compression conditions.
• Coordinate front-to-side artwork transitions with folds, seals and expected filled shape.

MOQ & Lead Time

Custom premade pouches are reviewed from 30,000 pieces per size and artwork, subject to final factory approval. Production timing is confirmed against the current factory schedule after the specification and artwork are approved.

Quality Control

• Verify width, height, side panels, base construction, opening and seal widths against the signed drawing.
• Fill representative samples to check capacity, standing, top closure, drop and compression behavior.
• Check laminate bond, seal integrity, zipper or valve function and puncture response where relevant.
• Inspect panel registration, fold alignment, bottom symmetry and filled-pack presentation.

Common Problems

• A copied pouch size does not hold the target weight because the new product has a different density.
• Insufficient headspace or opening width makes filling, zipper cleaning or final sealing unreliable.
• The base looks uneven because dimensions, fill distribution or formed-bottom tolerances were not validated.
• Artwork, valve or window crosses folds and seals or becomes distorted after filling.

What to Prepare Before Inquiry

• Product type, density, particle shape and oil or powder characteristics
• Target fill weight and required headspace
• Target filled dimensions or reference sample
• Width, height, side panels, base and filling opening
• Shelf life, storage and barrier requirements
• Zipper, valve, window, notch and final closure
• Filling, sealing, drop and compression conditions
• Quantity per artwork, colors and editable artwork

Related Guides

• How to Specify Common Flexible Pouch Types and Optional Features
• How to Plan a Filled Pet Food Pouch Handling and Closure Trial

Packaging project checks

Conditions, evidence, limitations and the next buyer action

Review the format as a controlled project specification, not as a conclusion drawn from a pouch name or photograph.

1. 01

   Condition

   Panel, gusset, base, closure and fill geometry are shown on a controlled drawing.

   Evidence

   Dimensioned drawing plus representative filled and packed samples.

   Limitation

   Format name or an empty pouch photograph does not establish capacity or shelf stability.

   Next action

   Confirm measurement references and filled-sample acceptance.

2. 02

   Condition

   Printing, creases, seals and optional components are evaluated together.

   Evidence

   Approved proof and converted sample showing each critical region.

   Limitation

   A studio image cannot prove print registration, sealing or transport performance.

   Next action

   Record critical regions in the artwork and validation register.

These units organize project decisions; they do not prescribe a universal material, performance, compliance, shelf life, price, lead time or MOQ.

Prepare your project brief

Plan product evidence before approval

The laboratory page records available instrument categories and one bounded sample report. It does not mean this product, structure or batch has passed testing.
